Phocos Inverter Integration Guide

Phocos Inverter Integration Guide

Technical notes:

  1. Make sure the battery/inverter system is sized correctly. An under/oversized system will reduce efficiency and/or damage the battery.
    1. Contact techsupport@fortresspower.com for help sizing your system.
  2. Please enter the following parameters into your inverter.

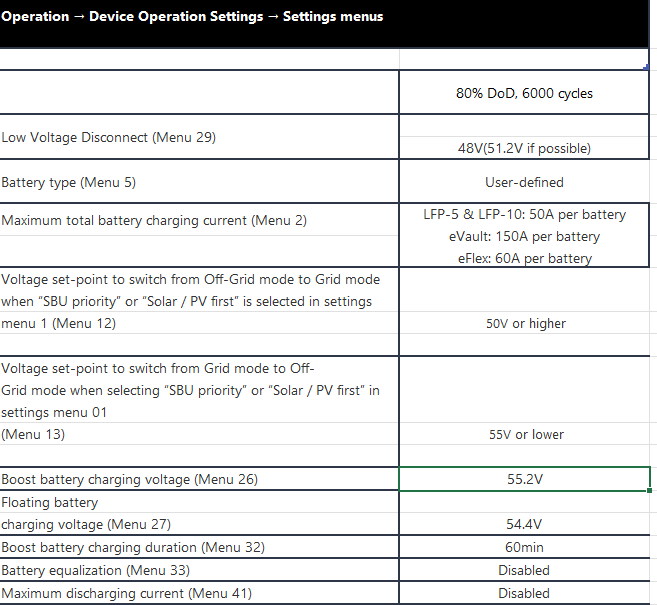

Parameter Setting for Fortress Battery with Phocos Any-grid 5kW/48V Hybrid Inverter


Once these settings have been applied, activate the circuit breakers or insert the fuses to energize the various inputs and outputs on the Any-Grid in the following order (skip any that are not connected):

1.   AC input

2.   PV input

3.   AC output

The programming of the battery-related settings of the Any-Grid is now complete.
