Avalon Battery Wall Mount Bracket Installation Instructions

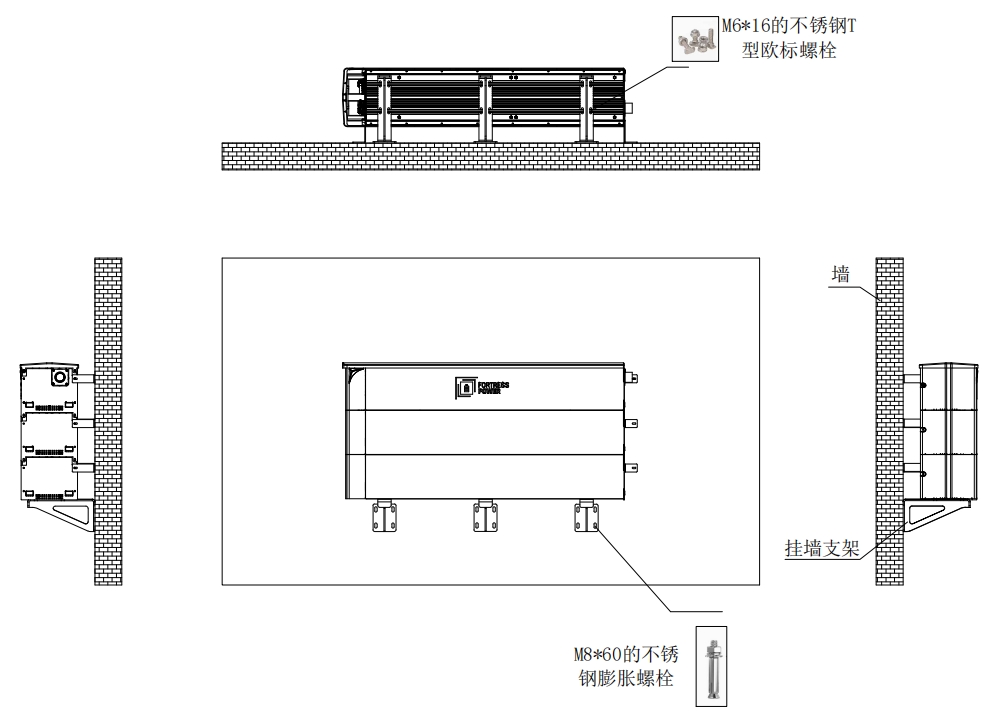

(Installation Diagram)

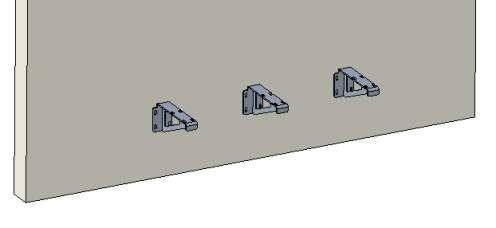

- Select the installation area and fix the point (mark the installation location of the wall-mounted brackets, and evenly space the wall-mounted brackets according to 16 inches).
- Drill holes in the wall and embed M8*60 stainless steel expansion screws. Each wall-mounted bracket is equipped with 4 expansion screws (12 in total).
- Use M8*60 expansion screws to fix the three wall-mounting brackets on the all.
+
(Step 1-3 Reference)

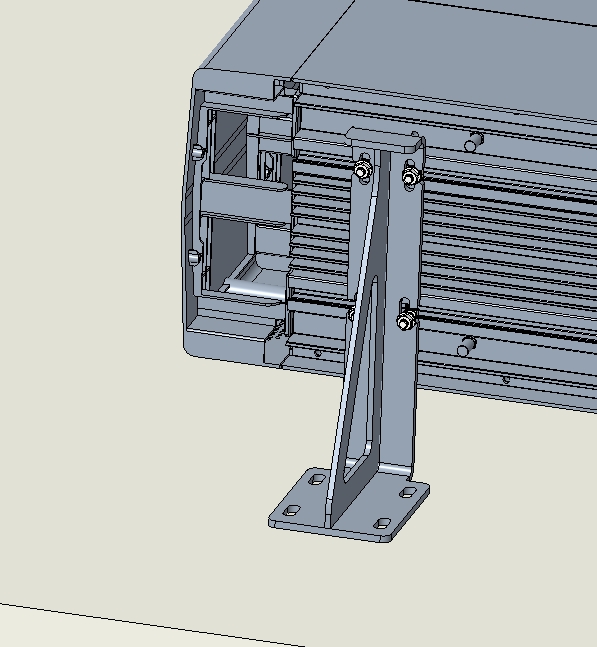

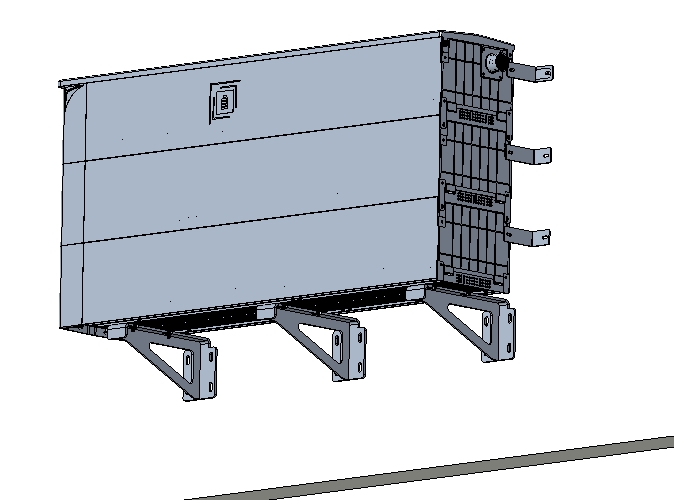

- Place the high-voltage module on the appropriate position of the wall-mounting bracket (align the hole position of the wall-mounting bracket with the T-slot of the aluminum plate at the bottom of the high-voltage module).
- The bottom is fixed with M6*16 T-shaped European standard bolts, and 4 T-shaped European standard bolts are used on each wall bracket (12 in total).
(Step 1-3 Reference)
- Subsequent installation of stacked and wall-mounted small sheets is the same as conventional installation.
