eForce Inverter Integration Guide (ENVY)
Important Notice
This Quick Guide does not exempt the installer or User from reading each product manual. Failure to do so may risk damaging both Fortress Power equipment and other manufacturers and void warranty.
Connection Diagrams
Connection Overview
Parallel Connection Overview

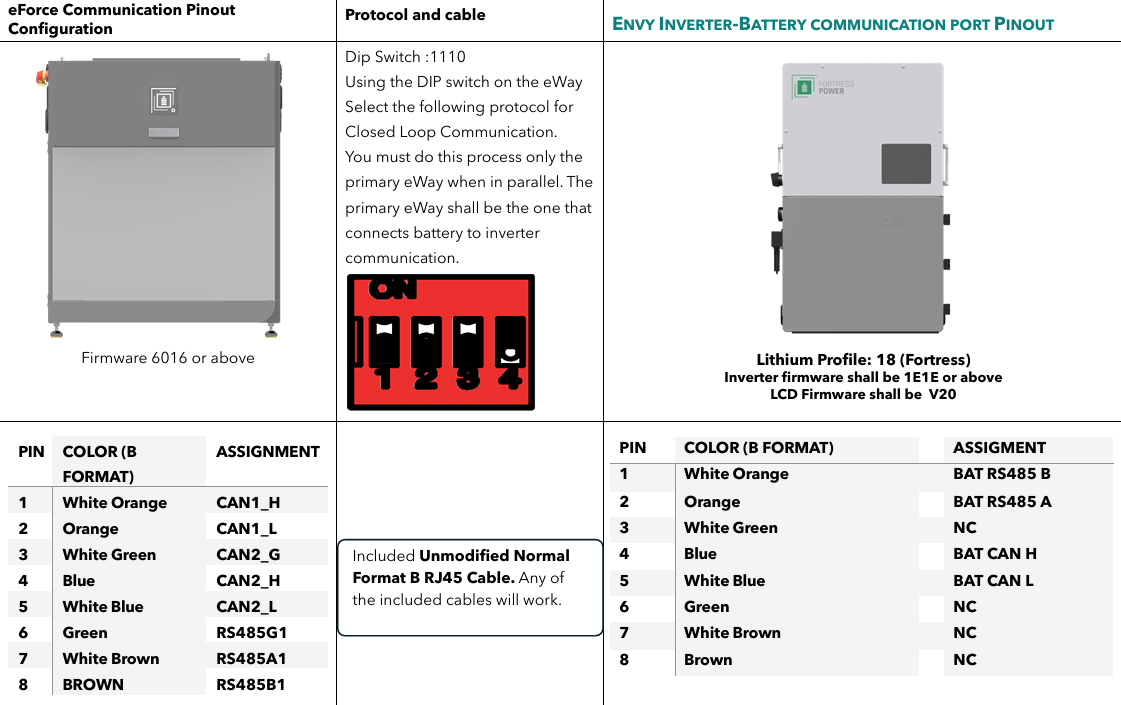

Closed loop and Pinout Definitions
To ensure Closed Loop communication, please follow the process below. If making a communication cable, refer to the pin out diagram for an RJ45 cable below. Type B format ethernet cable may also be used.
Important Notice
This Quick Guide does not exempt the installer or User from reading each product manual. Failure to do so may risk damaging both Fortress Power equipment and other manufacturers and void warranty.
Connection Diagrams
Connection Overview
Parallel Connection Overview
This Quick Guide does not exempt the installer or User from reading each product manual. Failure to do so may risk damaging both Fortress Power equipment and other manufacturers and void warranty.
Parallel Connection Overview
Closed loop and Pinout Definitions
To ensure Closed Loop communication, please follow the process below. If making a communication cable, refer to the pin out diagram for an RJ45 cable below. Type B format ethernet cable may also be used.
Commissioning
1. Turn on the Inverter Battery Breaker on the Inverter
2. Turn ON the Disconnect on the eWay. For paralleled battery systems, only turn on the Primary Battery
1. Turn on the Inverter Battery Breaker on the Inverter
2. Turn ON the Disconnect on the eWay. For paralleled battery systems, only turn on the Primary Battery
Programming the Inverter
Fortress Power Envy
Before setting the parameters, make sure the system is in Standby. Make sure to press SET for each setup. Confirm the battery is doing Closed Loop Communications with the inverter under the Battery of the Data Section.
Battery Setup:
Self-Consumption Mode:
Back up:
Off-Grid:
