Report Section Overview

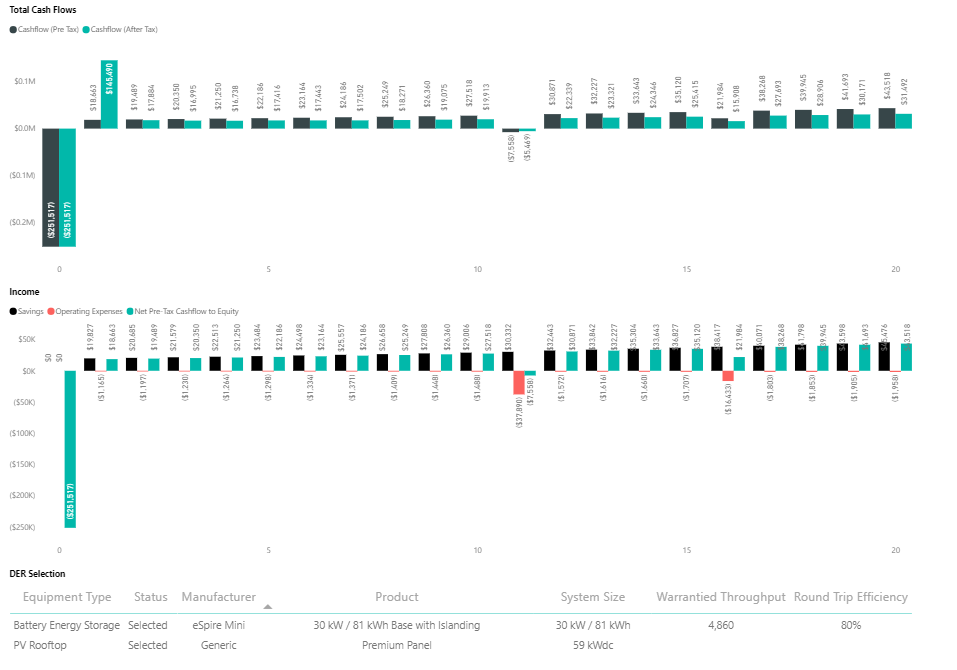

The optimization results report is an interactive set of visualizations detailing multiple aspects of the scenario's financial and operational results.


The report comprises three sections, each with a different focus:

  • Project Summary—Contains information on the project location, site plan, project cost, total system generative power and storage capacity, and evaluated and selected DERs.
  • Utility Bill Savings – Contains detailed information on the energy savings analysis, and projected monthly utility bill, and demand response programs revenue and savings.
  • Time Series—Provides 15-minute modeled operation of selected DERs against the provided energy use profile.

Throughout the report, many visualizations compare the suggested scenario to baseline operation. Baseline operation assumes no DERs are installed and that the load in the energy use profile is fully satisfied by the utility under the chosen utility tariff.

The detailed results for any graph or table can be seen by right clicking on them and choosing Show Data.

NOTE:

  • Project Name, Scenario Name, Evaluated DERs, and Scenario Id are the same for all the report sections. This information is extracted from the project and scenario inputs.
  • Meter Name, Meter Serial and Tariff Name information is same for all the report sections. This information is extracted from the previously specified energy use profile.
