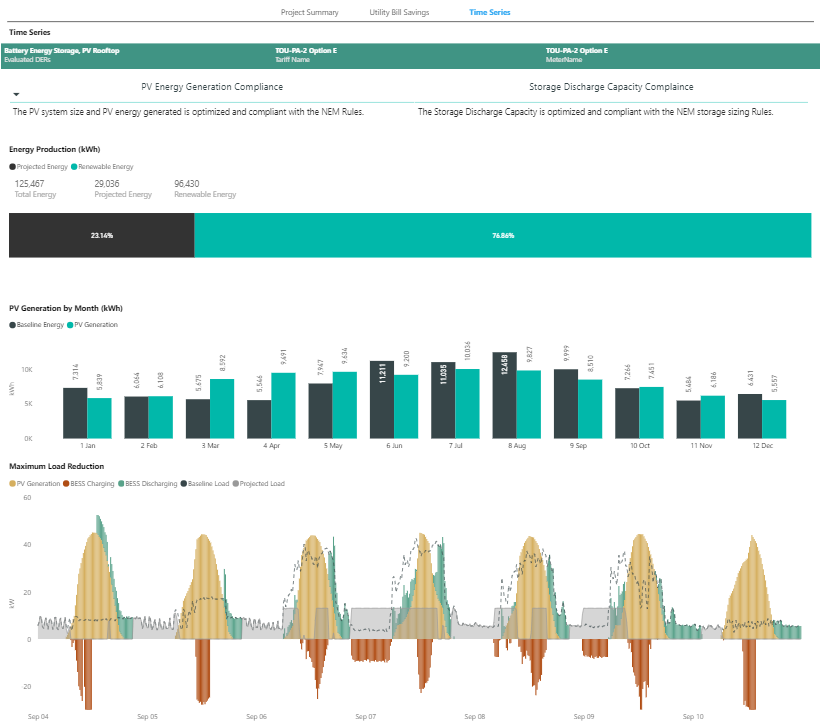

The Time Series page provides a detailed breakdown of the interaction among all the selected and modeled DERs in the scenario at 15-minute intervals for the week with the maximum load reduction within the 12 months modeled for the initial year of operation.


Detailed information about modeled PV generation is shown both as an overall portion of the total load as well as a monthly breakdown against that load.

Energy flow is broken down among the different DERs in the following ways:

  • PV to Load- The amount of power that is generated by the PV system that is used to serve the load.
  • BESS to Load- Power that battery discharges to serve the load.
  • PV to Grid- Excess power that is exported back to the grid to receive the energy credits.
  • PV to BESS- The power in (kW) that is used to charge the energy storage from the PV system.
  • Grid to BESS- Power that is used from the grid to charge the battery.
  • Baseline Load- Actual load of the system before installing the DER(s).
  • Projected Load- New load of the system after DER(s) is installed.

The Delivered Energy chart at the bottom shows the annual kWh generation of any applicable PV system with degradation over the 20 year project lifetime.
